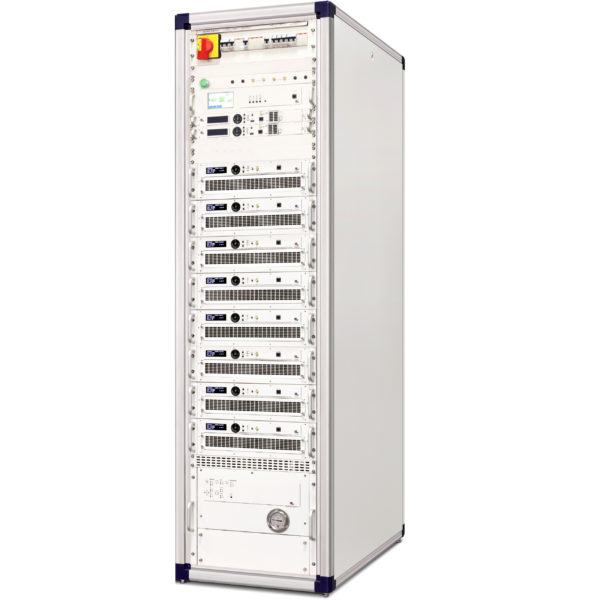

11 KW DAB TRANSMITTER LQ
11 KW DAB TRANSMITTER LQ
The P75 Line is the Multi Amplifier Liquid Cooled Transmitter family from SYES.
P75-08 is equipped with Driver (Dual Driver Option) and N°8 plug-In Amplifiers.
It is equipped with High Efficiency Wideband DAB state-of-the-art amplifiers characterized by high-power density and excellent signal quality granting optimal parameters such as shoulder attenuation and MER.
The P75 amplifiers are hot pluggable and are equipped with 3x redundant Hot Plug-in power supplies each, assuring the maximum reliability and the easiest maintenance.
P75-08 is equipped with Driver (Dual Driver Option) and N°8 plug-In Amplifiers.
It is equipped with High Efficiency Wideband DAB state-of-the-art amplifiers characterized by high-power density and excellent signal quality granting optimal parameters such as shoulder attenuation and MER.
The P75 amplifiers are hot pluggable and are equipped with 3x redundant Hot Plug-in power supplies each, assuring the maximum reliability and the easiest maintenance.
- Multimode platform: Transmitter, Heterodyne Transposer, Regenerative Transmitter, Gap Filler and Single Frequency Echo Canceller
- Multi Input: Nr.2 Hitless EDI/ETI switches+ 1xSFP (optical/electrical), Nr.1 SAT (DVB-S2/SX with CAMSlot)
- Double Transmitter: Includes the ability to transmit two DAB+ frequencies with the same transmitter
- COT Feature (Continuity of Transmission) : null packet insertion to compensate for micro input interruptions
- The most advanced manual, automatic and adaptive linear and nonlinear pre-corrector.
- Sky-High efficiency to minimize energy consumption and OPEX up to 52%;
- Fully frequency agile without need for any tuning or trimming.
- ON Board GNSS receiver (GPS, GLONASS, BEIDU, GALILEO) for SFN Applications.
- USB input to fast save/load configurations.
- Hot Pluggable Power Amplifiers (option);
- Power Amplifiers with triple redundant Hot Plug-in power supplies;
- Use of tools reduced almost to zero including pallet replacement.
- Dual Independent temperature controlled redundant pumps for better efficiency and performance (plug-in tool free pump swap)
- Dual Blower Heat exchanger
- Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts.
