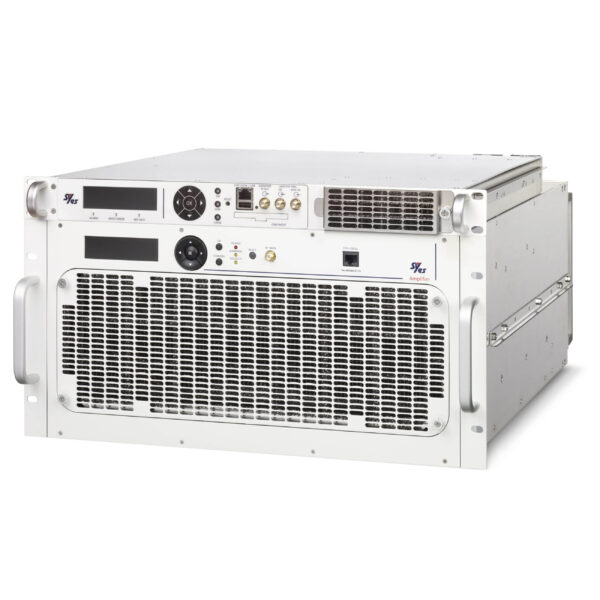

The 1.25kW VHF-BIII is the Syes AIR Cooled TV transmitters SLIM Line.
Fully wide band high efficiency with a system efficiency up to 50%.
Composed by one PCM driver (Dual Driver Option) and one (1) SLIM5 amplifier.
Low Consumption, Compact and Easy to maintain, with a clear and intuitive design, it is Syes next generation of air cooled transmitters, available in band I, Ill and IV-V.
The SLIM family is designed to be the most efficient, robust and high performance.
- Multistandard: ATSC (including ATSC3.O), ISDB-Tb (ABNT NBR 15.601), DTMB, DVB-T/T2, Analog. 2x ASI with Hitless switch, 2x IP
- Ethernet, A/V for analog broadcasting.
- The most advanced manual, automatic and adaptive linear and nonlinear pre-corrector.
- Fully frequency agile without need for any tuning or trimming.
- ON Board GNSS receiver (GPS, GLONASS, BEIDU, GALILEO).
- USB input to fast save/load configurations.
- Highest performances in terms of MER, BER and shoulders.
- Nr. 2 Independent temperature controlled low-noise fans.
- Use of tools is reduced almost to zero including pallets replacement.
- Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts. Over temperature protection.
- VSWR and overpower protection by hardware and software with automatic power reduction. Automatic reboot in case of electricity failure.
- Alarm history available on web interface and through SNMP.
- Fully solid-state power amplifier module.
