3.0 kW UHF TV TRANSMITTER LQ
3.0 kW UHF TV TRANSMITTER LQ

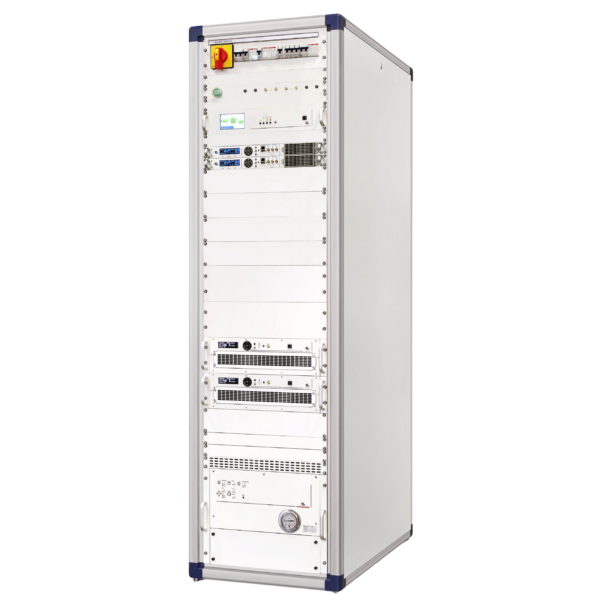

The 3KW UHF Transmitter (P75-02) is the Multi Amplifier Liquid Cooled Transmitter, P75 LINE family from SYES.
P75-02 is equipped with Driver (Dual Driver Option) and N°2 plug-In Amplifiers.
It is equipped with High Efficiency Wideband UHF/VHF and Low VHF state-of-the-art amplifiers characterized by high-power density and excellent signal quality granting optimal parameters such as shoulder attenuation and MER.
The P75 amplifiers are hot pluggable and are equipped with 3x redundant Hot Plug-in power supplies each, assuring the maximum reliability and the easiest maintenance.
Multimode platform: Transmitter, Heterodyne Transposer, Regenerative Transmitter, Gap Filler and Single Frequency Echo Canceller
Multi Standard: DVB-T/T2, ATSC1.0/3.0, ISDB-T, DTMB, Analog(NTSC/PAL), 5G Broadcast Multi Input: RF, SAT (DVB-S/S2/SX), 2x ASI (T2MI,SMPTE310) with Hitless switch (Priority customer settable), 2x IP Ethernet, 1xSFP (optical/electrical), A/V for analog broadcasting.
The most advanced manual, automatic and adaptive linear and nonlinear pre-corrector.
Sky-High efficiency to minimize energy consumption and OPEX;
Fully frequency agile without need for any tuning or trimming.
ON Board GNSS receiver (GPS, GLONASS, BEIDU, GALILEO).
USB input to fast save/load configurations.
Highest performances in terms of MER, BER and shoulders.
Fully frequency agile without need for any tuning or trimming.
Hot Pluggable Power Amplifiers Option;
Power Amplifiers with triple redundant Hot Plug-in power supplies;
Use of tools for maintenance reduced almost to zero including pallets replacement.
Dual Independent temperature controlled low-noise fans for better efficiency and performance (tool free swap)
Dual Blower Heat exchanger
Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts.
