3.75 kW VHF-BIII TV TRANSMITTER
3.75 kW VHF-BIII TV TRANSMITTER

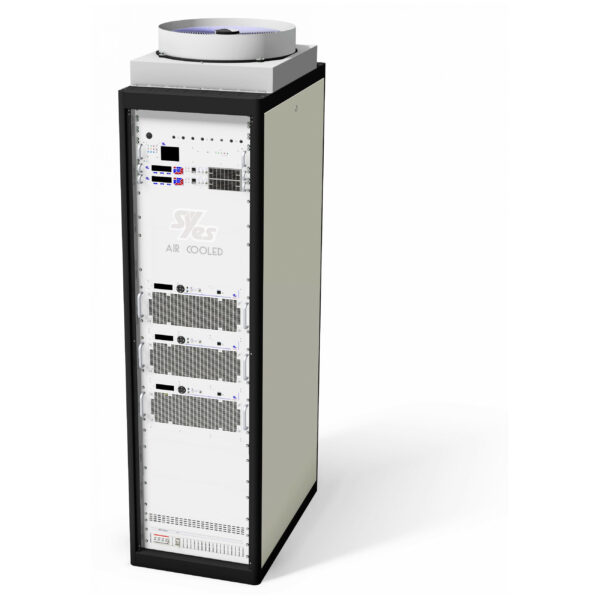

The 3.75kW VHF-BIII is the Syes AIR Cooled TV transmitters SLIM Line.
Fully wide band high efficiency with a system efficiency up to 50%.
Composed by one PCM driver (Dual Driver Option) and three (3) SLIM5 amplifiers.
Low Consumption, Compact and Easy to maintain, with a clear and intuitive design, it is Syes next generation of air cooled transmitters, available in band I, Ill and IV-V.
The SLIM family is designed to be the most efficient, robust and high performance.
• Multistandard: ATSC (including ATSC3.O), ISDB-T, DTMB, DVB-T/T2, Analog, DAB.
• 2x ASI with Hitless switch, 2x IP Ethernet, A/V for analog broadcasting.
• The most advanced manual, Automatic and Adaptive Linear and Non-Linear Pre-corrector.
• Fully frequency agile without need for any tuning or trimming.
• ON Board GNSS receiver (GPS, GLONASS, BEIDU, GALILEO).
• USB input to fast save/load configurations.
• Amplifier equipped with No. 3 Hot Pluggable power supplies.
• RF Pallets with independent carrier mount, no re-adjustment needed.
• Highest performances in terms of MER, BER and shoulders.
• Independent temperature controlled low-noise fans.
• Use of tools is reduced almost to zero including pallets replacement.
• Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts.
