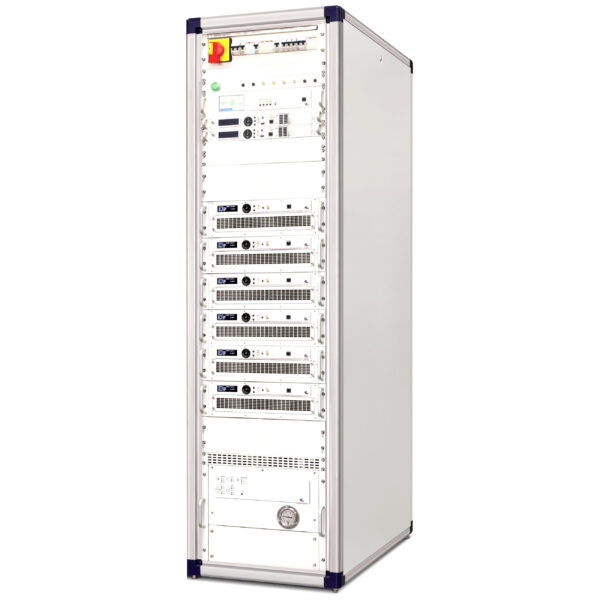

39 kW FM TRANSMITTER LQ
39 kW FM TRANSMITTER LQ
The most fully featured HD Sound FM transmitter ever, digital processing completely based on FPGA technology granting crystal clear and highly stable audio performances.
Inputs: MPX, MPX over AES3, MPX over IP, L&R, AES/EBU, RF(Optional), ASI(Optional), SAT(Optional)External RDS, 1 pps and 10 MHz inputs.
Single Frequency Network: an optional GPS receiver, an extremely precise built-in OCXO, backed by a proprietary SW sharpened by years of on-field tests, allows the realization of FM Single Frequency Networks, where the interference area can be totally managed.
• DSP/DDS Top Performance Modulator
• Inputs: MPX, MPX over AES3, MPX over IP, L&R, AES/EBU, RF(Optional), ASI(Optional), SAT(Optional)
• Broadband extended bandwidth 76MHz-108MHz
• Hot plug-in PSU. All amplifiers from 3 kW and above are equipped with triple plug-In redundant power supplies.
• 5-Band Audio Processor and equaliser (optional)
• FM Repeater and Transposer (optional)
• Built-in Dynamic RDS Encoder
• USB input to fast save/load configurations
• Built-in GPS for SFN applications (optional)
• Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts
• High efficiency up to 78% to minimize consumption and OPEX.
