4.5 KW DAB TRANSMITTER
4.5 KW DAB TRANSMITTER

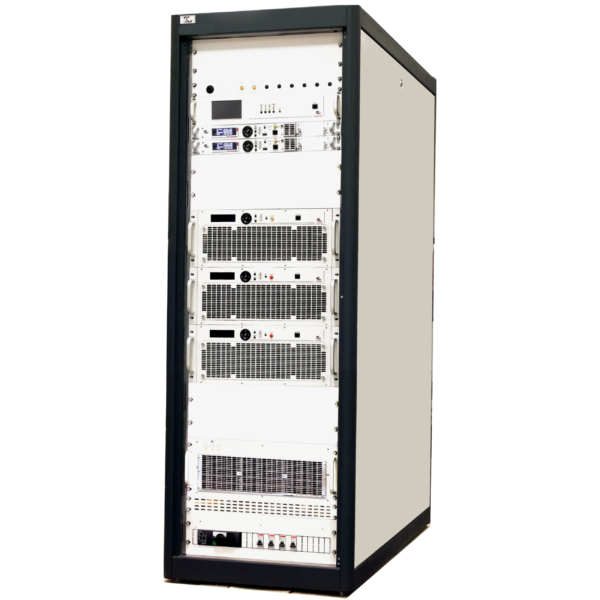

The 4500 W DAB (SLIM4-03/DAB) is the Syes Compact AIR Cooled TV transmitters SLIM Line.
Fully wide band high efficiency with a system efficiency up to 52%.
Composed by one PCM driver (Dual Driver Option) and three (3) SLIM4 amplifiers.
Low Consumption, Compact and Easy to maintain, with a clear and intuitive design, it is Syes next generation of air cooled transmitters.
The SLIM family is designed to be the most efficient, robust and high performance.
- Multimode platform: Transmitter, Heterodyne Transposer, Regenerative Transmitter, Gap Filler and Single Frequency Echo Canceller
- Multi Input: Nr.2 Hitless EDI/ETI switches+ 1xSFP (optical/electrical), Nr.1 SAT (DVB-S2/SX with CAMSlot)
- Double Transmitter: Includes the ability to transmit two DAB+ frequencies with the same transmitter
- COT Feature (Continuity of Transmission) : null packet insertion to compensate for micro input interruptions
- The most advanced manual, automatic and adaptive linear and nonlinear pre-corrector.
- Sky-High efficiency to minimize energy consumption and OPEX up to 52%;
- Fully frequency agile without need for any tuning or trimming.
- ON Board GNSS receiver (GPS, GLONASS, BEIDU, GALILEO) for SFN Applications.
- USB input to fast save/load configurations.
- Hot Pluggable Power Amplifiers (option);
- Power Amplifiers with triple redundant Hot Plug-in power supplies;
- Use of tools reduced almost to zero including pallet replacement.
- Dual Independent temperature controlled low-noise fans
- Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts.
