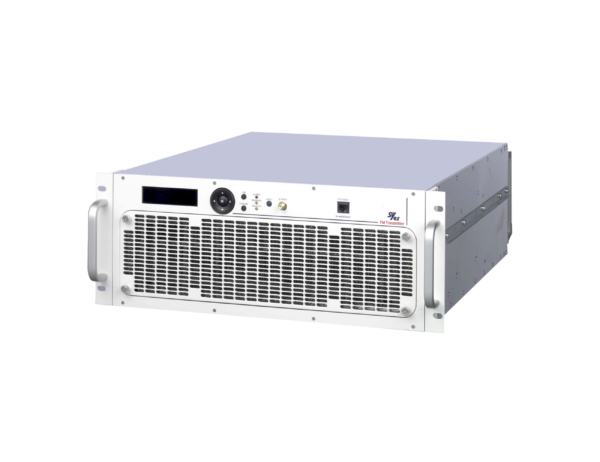

6 kW FM COMPACT TRANSMITTER
6 kW FM COMPACT TRANSMITTER
The most fully featured HD Sound FM transmitter ever, digital processing completely based on FPGA technology granting crystal clear and highly stable audio performances.
Inputs: MPX, MPX over AES3, MPX over IP, L&R, AES/EBU, RF(Optional), ASI(Optional), SAT(Optional)External RDS, 1 pps and 10 MHz inputs.
Single Frequency Network: an optional GPS receiver, an extremely precise built-in OCXO, backed by a proprietary SW sharpened by years of on-field tests, allows the realization of FM Single Frequency Networks, where the interference area can be totally managed.
• DSP/DDS Top Performance Modulator
• Inputs: MPX, MPX over AES3, MPX over IP, L&R, AES/EBU, RF(Optional), ASI(Optional), SAT(Optional)
• Broadband extended bandwidth 76MHz-108MHz
• Hot plug-in PSU. All amplifiers from 3 kW and above are equipped with triple plug-In redundant power supplies.
• 5-Band Audio Processor and equaliser (optional)
• FM Repeater and Transposer (optional)
• Built-in Dynamic RDS Encoder
• USB input to fast save/load configurations
• Built-in GPS for SFN applications (optional)
• Remote control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts
• High efficiency up to 78% to minimize consumption and OPEX.
