800 W VHF-BIII TV TRANSMITTER

800 W VHF-BIII TV TRANSMITTER

Categories: , , Tags: , , , , , ,

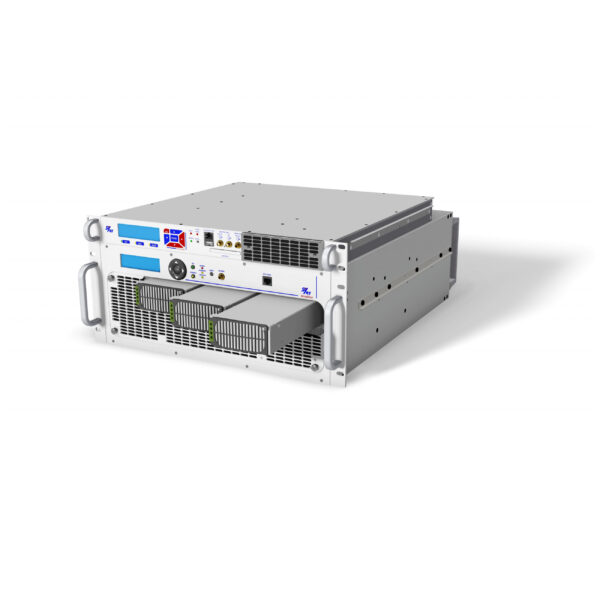

The 800W VHF-BIII  is the Syes  AIR Cooled TV transmitters SLIM Line.
Fully wide band high efficiency with a system efficiency up to 50%.
Composed by one PCM driver (Dual Driver Option) and one (1) SLIM4 amplifier.
Low Consumption, Compact and Easy to maintain, with a clear and intuitive design, it is Syes next generation of air cooled transmitters, available in band I, III and IV-V.
The SLIM family is designed to be the most efficient, robust and high performance.

DATASHEET
IN TOUCH

• Multi Standard: DVB-T/T2, ATSC1.0/3.0, ISDB-T, DTMB, Analog(NTSC/PAL), 5G Broadcast
• Multi Input: RF, SAT (DVB-S/S2/SX), 2x ASI(T2MI,SMPTE310) with Hitless switch, 2x IP Ethernet, 1xSFP (optical/electrical), A/V for analog broadcasting.
• The most advanced manual, automatic and adaptive linear and nonlinear pre-corrector.
• Fully frequency agile without need for any tuning or trimming.
• ON Board GNSS receiver (GPS, GLONASS, BEIDU, GALILEO).
• USB input to fast save/load configurations.
• Highest performances in terms of MER, BER and shoulders.
• Nr. 2 Independent temperature controlled low-noise fans.
• Use of tools for maintenance reduced almost to zero including pallets replacement.
• Remote Control via SNMP, friendly web browser GUI, no need of plug-in or apps, dry contacts.
